PRICE LIST No.
STS-87071G |
|
|
|
|
|
Item |
UNIT
PRICE(USD/PC)
FOB CHONGQING-CHINA |
|

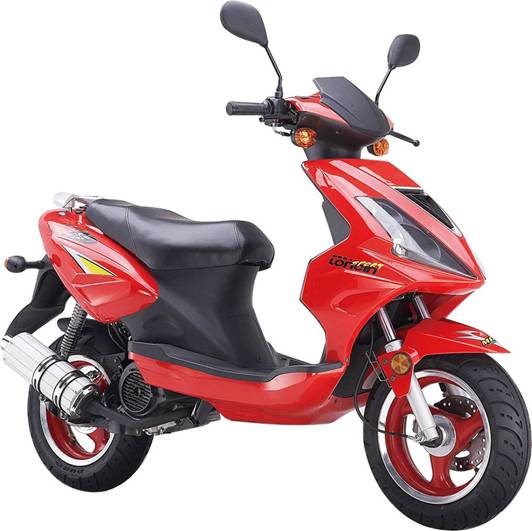

LX150T-15A |
|
|
|
|
|
|
|
|
|
|
|
|
specification: |
|
Vehicle Type |
B10(150CC) |
|
Engine Type |
One cylinder,4
stroke,air-cooled |
|
Engine Model |
LC157QMJ |
|
Cylinder
Arrangement |
Single
Cylinder |
|
Bore×Stroke
(mm) |
57.4×57.8 |
|
Piston
Displacement (cc) |
149.6 |
|
Compression
Ratio |
9.0:1 |
|
Maximum Power
(kw/r/min) |
7.0/8000 |
|
Maximum Torque
(N.m./rpm) |
9.0/5500 |
|
Transmission
System |
Strap Drive |
|
Ignition Type |
C.D.I |
|
Starter System |
Electric/Kick |
|
Transmission |
Stepless |
|
L×W×H (mm) |
1870×660×1175 |
|
Wheel Base
(mm) |
1250 |
|
Ground
Clearance (mm) |
160 |
|
Dry Weight
(kg) |
106 |
|
Brake
(Front/Rear) |
Disk/Drum |
|
Tyre, Front |
120/70-12 |
|
Tyre, Rear |
130/70-12 |
|
Fuel Tank
Capacity (L) |
4.5 |
|
Engine Oil
Capacity (L) |
0.8 |
|
Max. Load
Capacity (kg) |
150 |
|
Max. Speed(km) |
80 |
|
Battery |
12V7A.h |
|
|
package: 75PCS to one 40'HQ |
|
payment:
by T/T, 30% upon the confirmation of order, 70% before shipment |
|
shipment:
deliver in 30 days after the receipt of 30% payment |
|
|
|
|
|
|
|
|
|
|
|
|
