| Item |
UNIT
PRICE(USD/PC)
FOB CHONGQING-CHINA |
|

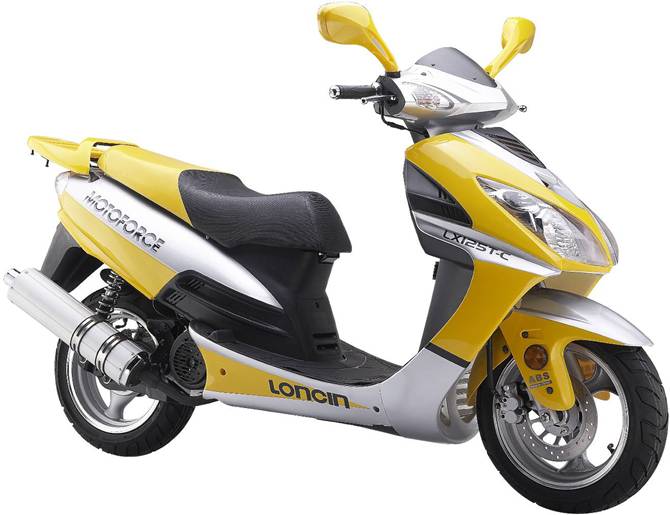

| LX125T-CIIIB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| specification: |
|
| Vehicle Type |
125CC |
|
| Engine Type |
One
Cylinder,air cooling,4 stuoke,Horizontal |
|
| Engine Model |
LC152QMI、152QMI |
|
| Cylinder
Arrangement |
Single
Cylinder |
|
| Bore×Stroke
(mm) |
52.4×57.8 |
|
| Piston
Displacement (cc) |
124.6 |
|
| Compression
Ratio |
9.2:1 |
|
| Maximum Power
(kw/r/min) |
5.5/7 500 |
|
| Maximum Torque
(N.m./rpm) |
7.2/6 500 |
|
| Transmission
System |
Strap Drive |
|
| Ignition Type |
C.D.I |
|
| Starter System |
Electric/kick |
|
| Transmission |
Stepless |
|
| L×W×H (mm) |
1970×700×1120 |
|
| Wheel Base
(mm) |
1370 |
|
| Ground
Clearance (mm) |
110 |
|
| Dry Weight
(kg) |
110±2 |
|
| Brake
(Front/Rear) |
Disk/Drum |
|
| Tyre, Front |
3.50-10/225kPa |
|
| Tyre, Rear |
3.50-10/225kPa |
|
| Fuel Tank
Capacity (L) |
6 |
|
| Engine Oil
Capacity (L) |
0.8 |
|
| Max. Load
Capacity (kg) |
150 |
|
| Max. Speed（km） |
85 |
|
| Battery |
12V 7Ah |
|
|
|
|
| package: 75PCS to one 40'HQ |
|
| payment:
by T/T, 30% upon the confirmation of order, 70% before shipment |
|
| shipment:
deliver in 30 days after the receipt of 30% payment |
|
|
|
|
|
|
|
|
|
|
|
|
