KC VEHICLE QUOTATIONSHEET
product scooter
product code ZN250T-B
price (regarding to: ordered q'ty/single unit/min. q'ty) FOB NINGBO
terms of shippment in 20-25 days after receving your 30% payment
terms of payment by T/T, 30% upon the confirmation of order,70% before shipment

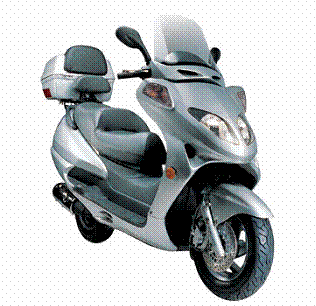

PRODUCT PICTURE (min 300 dpi 15 x 15) PACKING

unit packing: (WxHxL) 1990*750*1120

units per 40HQ 36
minimum order qty a 40HQ
MAIN FUNCTIONS
Vehicle specification:
Seat: (single seat or double seat) according to homologation double seat
Mass of the vehicle (with bodywork) in running order: 155 kg
Unloaden mass of the vehicle 150 kg
Technically permissible maximum laden mass: 305 kg
Technical permissible mass on each axle: 158 kg
  270 kg
Maximum Speed: 90 km/h
Maximum power (power/mass) of the vehicle in running order: 0.071 Kw/kg
Cylinder capacity: 244.3 cm3
working principle 4 stroke
cooling type water cooling
fuel: P
clutch type automatic
transmission type CVT
noise:                                                   stationary (at idle speed rpm) 80 db
at drive speed 74 db
starter type electric/foot
wheels and tyres:                                                                      front: 4.00-12
rear: 110/90-12
Vehicle Dimensions                                                       wheel base: 1552 mm
length: 2225 mm
width: 753 mm
height: 1206 mm
exhaust emissions: 250cc mg
homologation number e4*2002/24*1263*00
brake Fr. Disc/Rr. Disc
oil consumption (L/100KM) ≤3.1
WARRANT CONDITIONS OPTIONAL ACCSSORIES
2% FREE SPARE PARTS REAR BOX, ALARM,ABSHELMET
AVILABLE QUALITY CERTIFICATES
EEC,  EPA.DOT,3C
