| www.tradefinal.com |
|
|
|
|
|
|
|
|
|
|
|
|
| KIT ENTERPRISES,
INC. / USA |
|
| Phone: (313) 586-8886 |
|
| For quotes &
inquiries email: sales@tradefinal.com |
|
| KC VEHICLE
QUOTATIONSHEET |
|
| product |
scooter |
|
| MODEL / PART# |
ZN125T-7A |
|
| price
(regarding to: ordered q'ty/single unit/min. q'ty) |
FOB NINGBO-CHINA |
|
| remark: if RMB exchange rate
is less than 6.7(for example 6.5), the price will
be revised. |
|
|
|
| terms of shippment |
in 20-25 days after receving your 30% payment |
|
|
|
| terms of
payment |
by
T/T, 30% upon the confirmation of order,70% before shipment |
|
|
|

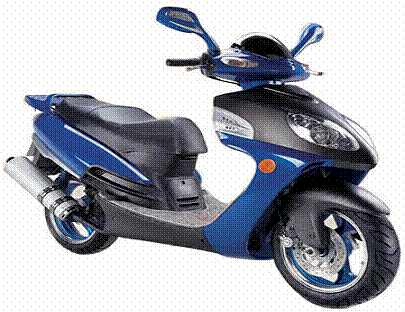

| PRODUCT
PICTURE (min 300 dpi 15 x 15) |
PACKING |
|
|
unit packing: (WxHxL) |
1900*580*860 |
|
| |
|
|
| units per
40HQ |
74
pcs |
|
| minimum order
qty |
a 40HQ |
|
| MAIN FUNCTIONS |
|
| Vehicle
specification: |
|
|
|
| Seat: (single
seat or double seat) according to homologation |
double seat |
|
|
| Mass of the
vehicle (with bodywork) in running order: |
118 |
kg |
|
| Unloaden mass
of the vehicle |
115 |
kg |
|
| Technically
permissible maximum laden mass: |
268 |
kg |
|
| Technical
permissible mass on each axle: |
145 |
kg |
|
| |
200 |
kg |
|
| Maximum Speed: |
85 |
km/h |
|
| Maximum power
at rpm |
5.7 |
Kw/7000min-1 |
|
| Maximum power
(power/mass) of the vehicle in running order: |
0.0483 |
Kw/kg |
|
| Cylinder
capacity: |
124.6 |
cm3 |
|
| working
principle |
4 |
stroke |
|
| cooling type |
force wind |
|
|
| fuel: |
P |
|
|
| clutch type |
automatic |
|
|
| transmission
type |
CVT |
|
|
| noise:
stationary (at idle speed rpm) |
84 |
db |
|
| at drive speed |
76 |
db |
|
| starter type |
electric/foot |
|
|
| wheels and
tyres:
front: |
130/60-13 |
|
|
| rear: |
130/60-13 |
|
|
| Vehicle
Dimensions
wheel base: |
1365 |
mm |
|
| length: |
1942 |
mm |
|
| width: |
702 |
mm |
|
| height: |
1168 |
mm |
|
| exhaust
emissions: |
125cc |
mg |
|
| homologation
number |
e4*2002/24*1286*00 |
|
|
| brake |
Fr. Disc/Rr. Drum |
|
|
| oil
consumption (L/100KM) |
≤2.8 |
|
|
| WARRANT
CONDITIONS |
OPTIONAL ACCSSORIES |
|
| 2% FREE SPARE
PARTS |
REAR BOX, ALARM,ABS，HELMET |
|
| AVILABLE
QUALITY CERTIFICATES |
|
|
| EEC, 3C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
