| MODEL/ITEM# |
FOB CHONGQING |
|

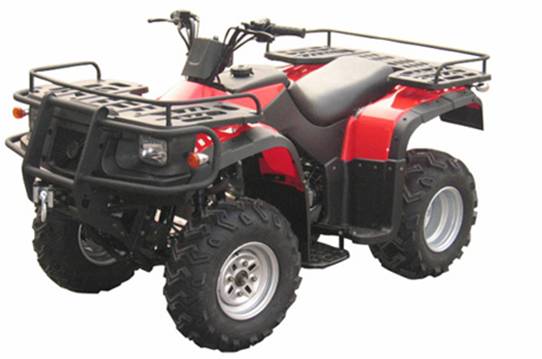

| ATV250-A |
|
|
|
|
|
|
|
|
|
|
|
|
| specification: |
|
| Overall
Length(mm): |
1940 |
|
| Overall
Width(mm): |
1050 |
|
| Overall
Height(mm): |
1160 |
|
| Seat
Height(mm): |
810 |
|
| Wheel
Base(mm): |
1160 |
|
| Ground
Clearance (mm): |
155 |
|
| Minimum
Turning Radius(mm): |
2900 |
|
| Engine Type: |
4 Stroke Air Cooled
SOHC |
|
| Cylinder
Arrangement |
Single
Cylinder |
|
| Bore ×
Stroke(mm): |
71×58 |
|
| Displacement(cc): |
229.6 |
|
| Corrected
Compression Ratio: |
8.7:1 |
|
| Maximum Power
(kW/r/m): |
10.5/6500 |
|
| Maximum
Torque (N.m/r/min): |
16/6000 |
|
| Starting
System: |
Electric
Starter & Recoil Starter |
|
| Ignition
System: |
C.D.I. |
|
| Lubrication
System: |
Force
& Splash |
|
| Transmission
System: |
5-Speed with Reverse |
|
| Transmission
Operation Type: |
Left
Foot Operation |
|
| Spark Plug
Gap (mm): |
0.6-0.7 |
|
| Clutch Type: |
Automatically |
|
| Fuel Type: |
RQ90 (unleaded) |
|
| Lubricate Oil Type: |
SAE
5W/30-15W/40 |
|
| Maximum Load
(kg): |
165 |
|
| Fuel Tank
Capacity (L): |
12 |
|
| Engine Oil
Capacity (L): |
1.6 |
|
| Battery Type/Capacity: |
12V/14Ah |
|
| Top
Speed (Km/h): |
75 |
|
| Front/Rear Brake: |
Drum/Drum
(Disc/Drum) |
|
| Front/Rear
Brake Operation |
Right Hand
Operation/Left Hand & Right Foot Operation |
|
| Front/Rear
Tire Size: |
AT23×7-10/AT22×10-10 |
|
| Front/Rear
Tire Type: |
Tubeless |
|
| Front Tire
Pressure (kPa): |
20 |
|
| Rear Tire Pressure (kPa): |
25 |
|
| Front Shock
Absorber: |
Coil
Spring/ Oil Damper |
|
| Rear Shock
Absorber: |
Coil Spring/Oil
Damper |
|
| Front Suspension: |
Dual
A Arm |
|
| Rear
Suspension: |
Swing Arm |
|
| Final
Transmission Type: |
Shaft
Drive |
|
| Net Weight (Kg): |
220 |
|
|
| package: 1967*1115*835，36PCS to one 40'HQ， |
|
| payment:
by T/T, 30% upon the confirmation of order, 70% before shipment |
|
| shipment:
deliver in 30 days after the receipt of 30% payment |
|
|
|
|
|
|
|
|
|
|
|
|
