| MODEL/ITEM# |
FOB CHONGQING |
|

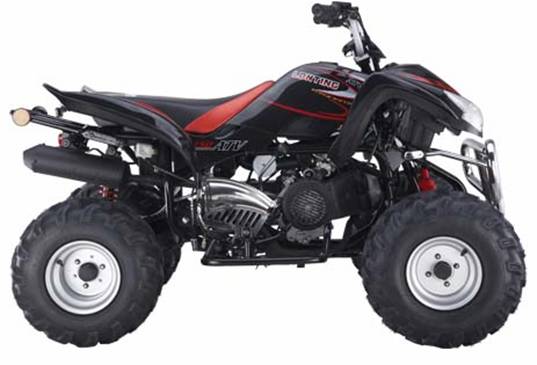

| ATV150-3 |
|
|
|
|
|
|
|
|
|
|
|
| specification: |
|
| Overall
Length(mm): |
1650 |
|
| Overall
Width(mm): |
920 |
|
| Overall
Height(mm): |
1080 |
|
| Seat
Height(mm): |
730 |
|
| Wheel
Base(mm): |
1110 |
|
| Ground
Clearance (mm): |
160 |
|
| Minimum
Turning Radius(mm): |
3000 |
|
| Engine Type: |
4
Stroke Air Cooled |
|
| Cylinder
Arrangement |
Single
Cylinder |
|
| Bore ×
Stroke(mm): |
57×57.8 |
|
| Displacement(cc): |
149.5 |
|
| Corrected
Compression Ratio: |
9.5:1 |
|
| Maximum Power
(kW/r/m): |
6.0/7500 |
|
| Maximum
Torque (N.m/r/min): |
8.3/6000 |
|
| Starting
System: |
Electric
Starter |
|
| Ignition
System: |
C.D.I. |
|
| Lubrication
System: |
Force
& Splash |
|
| Transmission
System: |
CVT |
|
| Transmission
Operation Type: |
Gear
Shaft/Right Hand Operation |
|
| Spark Plug
Gap (mm): |
0.6-0.7 |
|
| Clutch Type: |
Centrifugal,
Spring and Brake Clutch |
|
| Fuel Type: |
RQ90
(unleaded) |
|
| Lubricate Oil Type: |
SAE
5W/30-15W/40 |
|
| Maximum Load
(kg): |
95 |
|
| Fuel Tank
Capacity (L): |
7.8 |
|
| Engine Oil
Capacity (L): |
0.9 |
|
| Battery Type/Capacity: |
12V/7AH |
|
| Top
Speed (Km/h): |
56 |
|
| Front/Rear Brake: |
Drum/Disc |
|
| Front/Rear
Brake Operation |
Right Hand
Operation/Left Hand & Right Foot Operation |
|
| Front/Rear
Tire Size: |
19×7-8/18×9.5-8 |
|
| Front/Rear
Tire Type: |
Tubeless |
|
| Front Tire
Pressure (kPa): |
25 |
|
| Rear Tire Pressure (kPa): |
25 |
|
| Front Shock
Absorber: |
Coil
Spring/ Oil Damper |
|
| Rear Shock
Absorber: |
Coil
Spring/Oil Damper |
|
| Front Suspension: |
Dual
A Arm |
|
| Rear
Suspension: |
Swing
Arm |
|
| Final
Transmission Type: |
Chain
Drive |
|
| Net Weight (Kg): |
140 |
|
|
| package: 1469*860*770，63PCS to one 40'HQ， |
|
| payment:
by T/T, 30% upon the confirmation of order, 70% before shipment |
|
| shipment:
deliver in 30 days after the receipt of 30% payment |
|
|
|
|
|
|
|
|
|
|
|
|
