| MODEL/ITEM# |
FOB CHONGQING |
|

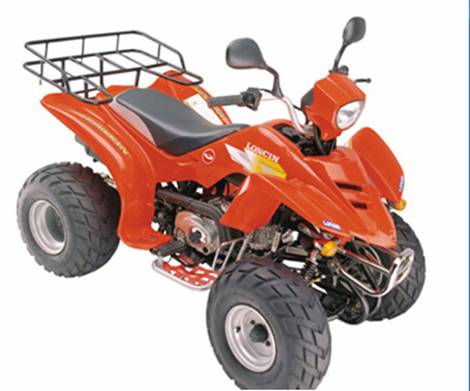

| ATV110-F |
|
|
|
|
|
|
|
| specification: |
|
| Overall
Length(mm): |
1540 |
|
| Overall
Width(mm): |
860 |
|
| Overall Height(mm): |
950 |
|
| Seat
Height(mm): |
670 |
|
| Wheel Base(mm): |
1040 |
|
| Ground
Clearance (mm): |
100 |
|
| Minimum Turning Radius(mm): |
2900 |
|
| Engine Type: |
4 Stroke Air Cooled |
|
| Cylinder Arrangement |
Single
Cylinder |
|
| Bore ×
Stroke(mm): |
52.4×49.5 |
|
| Displacement(cc): |
107 |
|
| Corrected
Compression Ratio: |
9.1:1 |
|
| Maximum Power (kW/r/m): |
5.5/8000 |
|
| Maximum
Torque (N.m/r/min): |
6.5/5750 |
|
| Starting System: |
Electric
Starter & Recoil Starter |
|
| Ignition
System: |
C.D.I. |
|
| Lubrication System: |
Force
& Splash |
|
| Transmission
System: |
3 Speed with Reverse |
|
| Transmission Operation Type: |
Left
Foot Operation |
|
| Spark Plug
Gap (mm): |
0.6-0.7 |
|
| Clutch Type: |
Automatically |
|
| Fuel Type: |
RQ90 (unleaded) |
|
| Lubricate Oil Type: |
SAE
5W/30-15W/40 |
|
| Maximum Load
(kg): |
95 |
|
| Fuel Tank Capacity (L): |
7.8 |
|
| Engine Oil
Capacity (L): |
0.95 |
|
| Battery Type/Capacity: |
12V/9Ah |
|
| Top Speed (Km/h): |
50 |
|
| Front/Rear Brake: |
Drum/Drum |
|
| Front/Rear
Brake Operation |
Right Hand
Operation/Left Hand&Right Foot Operation |
|
| Front/Rear Tire Size: |
19×7-8/18×9.5-8 |
|
| Front/Rear
Tire Type: |
Tubeless |
|
| Front Tire Pressure (kPa): |
20 |
|
| Rear Tire Pressure (kPa): |
25 |
|
| Front Shock Absorber: |
Coil
Spring/ Oil Damper |
|
| Rear Shock
Absorber: |
Coil Spring/Oil
Damper |
|
| Front Suspension: |
Dual
A Arm |
|
| Rear
Suspension: |
Swing Arm |
|
| Final Transmission Type: |
Shaft
Drive |
|
| Net Weight (Kg): |
130 |
|
|
| package: 1456*865*720，66PCS to one 40'HQ， |
|
| payment:
by T/T, 30% upon the confirmation of order, 70% before shipment |
|
| shipment:
deliver in 30 days after the receipt of 30% payment |
|
|
|
|
|
|
|
|
|
|
|
|
