Item UNIT PRICE(USD/PC)
FOB CHONGQING

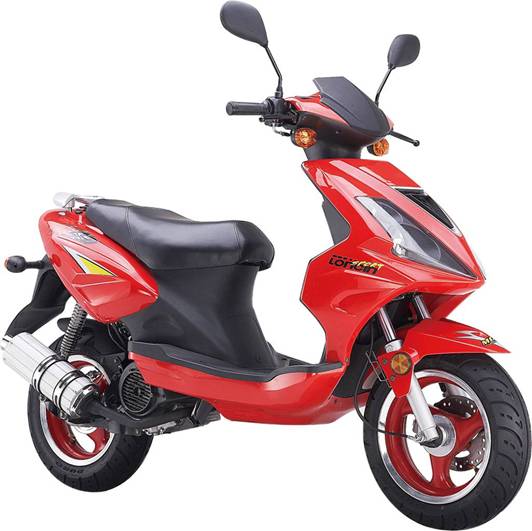

LX150T-15A 650
B09
specification:
Vehicle Type B10(150CC)
Engine Type One cylinder,4 stroke,air-cooled
Engine Model LC157QMJ
Cylinder Arrangement Single Cylinder
BoreStroke (mm) 57.457.8
Piston Displacement (cc) 149.6
Compression Ratio 9.0:1
Maximum Power (kw/r/min) 7.0/8000
Maximum Torque (N.m./rpm) 9.0/5500
Transmission System Strap Drive
Ignition Type C.D.I
Starter System Electric/Kick
Transmission Stepless
LWH (mm) 18706601175
Wheel Base (mm) 1250
Ground Clearance (mm) 160
Dry Weight (kg) 106
Brake (Front/Rear) Disk/Drum
Tyre, Front 120/70-12
Tyre, Rear 130/70-12
Fuel Tank Capacity (L) 4.5
Engine Oil Capacity (L) 0.8
Max. Load Capacity (kg) 150
Max. Speedkm 80
Battery 12V7A.h
package: 75PCS to one 40'HQ
payment: by T/T, 30% upon the confirmation of order, 70% before shipment
shipment: deliver in 30 days after the receipt of 30% payment
